PE100 HDPE Electrofusion Straight Coupling Plastic Pn16 Ef Equal Coupling Fitting

PE100 HDPE Electrofusion Straight Coupling Plastic Pn16 Ef Equal Coupling Fitting

Package size per unit product 100.00cm * 100.00cm * 100.00cm Gross weight per unit product 100.000kg View more products,

Send your inquiry

DESCRIPTION

Basic Info
Model NO. HDPE Fitting
Connection Electrofusion
Structure Vertical
Flexible or Rigid Rigid
Material PE
Standard Standard
Production Capaction 300, 00t/Year
Tensile Strength 30~40MPa
Certificate ISO9001, CE, Wras
Diameter Range DN25-DN800
Production Standard GB/CE/ISO....
Connection Way Electrofusion or Butt Welding
Transport Package Customized
Specification DN25-DN800
Trademark LANGBOONE
Origin China
HS Code 39172100
Production Capacity 300, 00t/Year
Packaging & Delivery
Package size per unit product 100.00cm * 100.00cm * 100.00cm Gross weight per unit product 100.000kg
Product Description

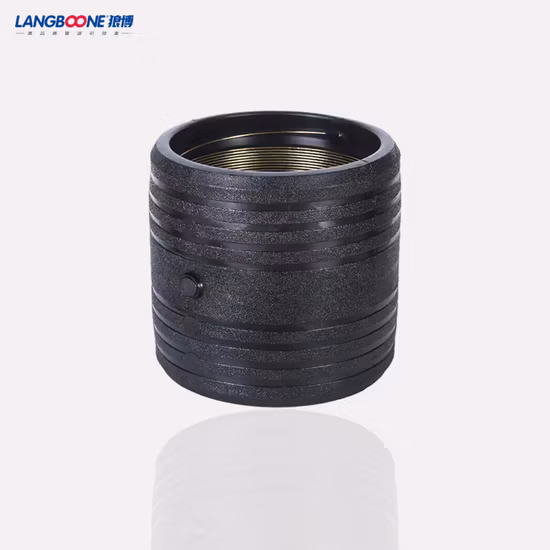

PE100 HDPE Electrofusion Straight Coupling Plastic Pn16 Ef Equal Coupling Fitting

View more products,you can click the product keywords below..

PIPES
HDPE pipeSteel Mesh PE Composite PipeSteel Skeleton PE Composite PipeDual-sealing PE Composite Pipe
HDPE Double Wall Corrugated PipeType-B HDPE Drainage PipeType-C HDPE Drainage PipeMPP Cabel Conduits
FITTINGS
HDPE Electrofusion FittingHDPE Butt Welding FittingHDPE Fabricated FittingPP Compression Fitting
Steel Plate Socket ElectrofusionComposite FittingDual-sealing Electrofusion FittingHDPE Drainage FittingMPP Cable Conduits Fitting

PE100 HDPE Electrofusion Straight Coupling Plastic Pn16 Ef Equal Coupling Fitting

PE100 HDPE Electrofusion Straight Coupling Plastic Pn16 Ef Equal Coupling Fitting

HDPE pipe fittings, also called polyethylene pipe fittings or poly fittings, are used for the connection of HDPE piping systems. Generally, the HDPE pipe fittings are available in most common configurations of couplers, tees, reducers, elbows, stub flanges & saddles.,etc.The HDPE pipe fittings, which are made by excellent quality material, are the ideal choice for the connection of the HDPE pipe that are made by us. The HDPE pipe fittings can be provided in various ranges, consisting: PP compression fittings, HDPE butt fusion fittings, HDPE electrofusion fittings.LANGBOONE is integrated provider of HDPE piping systems,and we can provide the HDPE pipe fittings with various items & specifications.HDPE electrofusion fittings are the more reliable & simple solution that are for HDPE pipe connection. Like HDPE butt fusion fittings, HDPE electrofusion fittings also adopt a thermofusion process to joint to the HDPE pipe, by using HDPE pipe electrofusion machine, the electric power go through the brass wire that is coiled inside the surface of the both of ends of fittings, melting the outer surface of HDPE pipe & inside surface of the HDPE electrofusion fittings.We can offer HDPE electrofusion fittings from dn20mm to dn630mm with pressure rating SDR11-PN16 bars

Advanced production equipment, core equipment imported from Germany and Japan, leading production technology and process

PE80/100 Virgin Material,manufactured by SINOPEC

High-quality special electric fuse, the material of the electric fuse shell and the pipe fitting are the same, the fusion is better, and the problem of electric fusion welding is solved

The electrofusion terminal has a protective shell to prevent damage to the electrofusion interface caused by brutal construction

Multitypes fittings with full range diameter,can meet all special request

Flange Surface have clearly sealed waterline,working with rubber flat to reach better tightness

PE100 HDPE Electrofusion Straight Coupling Plastic Pn16 Ef Equal Coupling Fitting

Product NameElectroFusion Fittings
MaterialPE100(3490LS ) , PE80(ME3440)
Diameter RangeDN25-DN800
Color Black ,Grey, Orange, Customized
TypeStraight, 90° elbow, 45° elbow, flange, end cap, equal tee, reducer straight, reducing tee etc.
Working PressurePn10, Pn12.5, Pn16, Pn20
Executive standardGB/T 13663.3-2018, ISO 4427, EN 12201
Temperature Range-20°C ~ 40 °C
ApplicationGas Supply, Water Supply, Drainage, Sewerage Treatment, Mine And Slurry Pipelines, Irrigation, etc
PackageCarton, Polybag, Color Box or Customized
OEMAvailable
FeaturesNon-toxic, Green Initiaive, Environment Friendly, Corrosion Resistance, Light weight, Easy To Transport And Install, Lower Maintance Costs
ConnectElectroFusion Welding , Flanged Joint
OutPut Voltage 39.5 ±0.5V
AdvantageLight weight, Flexibility, Toughness, Chemically Inert, Resistance to Abrasion, Smooth surface, Environmental stress crack resistance, Corrosion resistance, Frost & rodent resistance, Hygienic safety, Easy & quick installation
